250T Double Working Table Vulcanizing Hydraulic Press Machine

Product model：Yz33

Product number：08

View videoBack

Feature：

Movable Table, Displacement Sensor, Knocking Device, Mould Exchanging Trolley, Cooling Device, Cushion Device, Photo-electric Safety Device System Oil Heating Device, Industrial Touch Screen, Automati

Details

 PLATE VULCANIZING    HYDRAULIC PRESS

                                                          Yz33 Series

MACHINE APPEARANCE

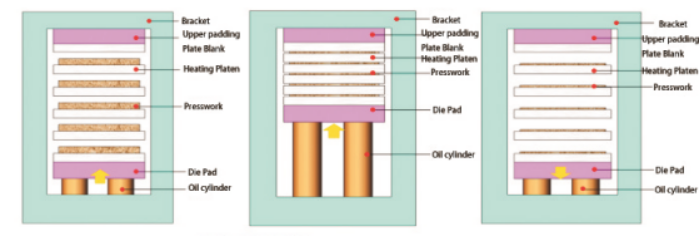

PRESSING PROCESS DIAGRAM

DATA SHEET

Model

unit

Yz33-25T

Yz33-50T

Yz33-63T

Yz33-100T

Yz33-160T

Yz33-250T

Clamping  Force

KN

250

500

630

1000

1600

2500

Working layer

Qty.

2~4

2~4

2~4

2~4

2~4

2~4

Piston stroke

mm

180

250

250

250/250

250/250

500

Heating Platen daylight

mm

90

125

125

125

125

125

Heating Platen Size

Left-right

mm

350

400

500

600

750

900

Front-back

mm

350

400

500

600

850

900

Heating  plate power

KW

1.5

2.2

3

7.5

11

15

Motor power

KW

7.2

9

10.8

33.75

45

45

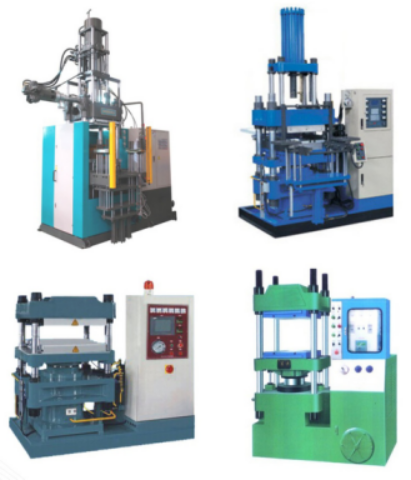

OPTIONAL DIAGRAM
